Configure Oracle Analytics Server(OAS) Domain

You are not alone if you feel so this post is for you. Many people don't have time or experstis That's why we started in first place. Typical understanding on the WLST/python coding I started exploring on that same idea to configure the OAS domain. But the OAS is much more sofisticated and provides you silent mode option and also once you complete the configuration of OAS domain all our OAS services will be started automatically.

Note that Vagrant based Oracle Linux installed Oracle VirtualBoxes are hosting Database and OAS. The system prerequisites ignore options that don't solve the LD_LIBRARY_PATH missing libraries. Since it is a simpler model I took couple of trials on the same VM. Learnings with different experiments:
  1. JDK installed with tar.gz file gives raise to LD_LIBRARY_PATH issues unresolved even though error-out libraries installed in the same OL7 repo.
  2. Another issue encountered while starting the bi_server1 ( Managed server on the OASDomain )

Let's get started the OAS domain configuration prerequisites are :
  1. Oracle Database installed up and running
  2. Oracle Java installed with rpm x64
  3. Oracle Analytics Server installed
  4. Hardware-wise 4Gb RAM is minimum

Now let's explore what all options we have for OAS dashboard component domain configurations:
As per the Oracle documentation found that there are two options
  1. OAS Standard Topology
  2. OAS Enterprise Topology
Usually, the standard topology will be used for the Analytics developers because it will be using the resources low because only a developer who will do test their reports and catalog changes on this. On the other hand, the Enterprise topology will be used to spread on multi-hosted OAS Domain where it is designed to serve production grade setup to server more external load on analytics reports.
and the picture will say a lot about these domains;

Standard topology



Enterprise Topology

Step 1: OAS Installed and Oracle Database up


Step 2. Silent mode Configuring OAS standard domain

#!/bin/bash
##########################################################################
# FileName      :   config_oas_domain.sh
# Oracle Analytics Server domain configuration script
# Author        :   Pavan Devarakonda
##########################################################################


# Create response file for oas_domain

echo "[ENGINE]
Response File Version=1.0.0.0.0
[GENERIC]
PERFORM_BI_STARTUP=true
SERVICE_INSTANCE_LIMIT=2
CONFIGURE_BIEE=true
CONFIGURE_BIP=true
INSTALL_EXALYTICS_IN_MEMORY_SOFTWARE=false
SERVICE_INSTANCE_MODE=SINGLE

############ CHANGED BY PAVANDEVARAKONDA ######################3

DOMAIN_NAME=OAS_DOMAIN
DOMAINS_DIR=/u01/fmw/domains
ADMIN_USER_NAME=weblogic
ADMIN_PASSWORD=weblogic123
ADMIN_CONFIRM_PASSWORD=weblogic123
DOMAIN_WORK=LOCAL

SCHEMA_TYPE=SCHEMA_TYPE_NEW
EXISTING_DATABASE_TYPE=ORACLE
CONNECT_STRING=192.168.33.250:1521:ORCLPDB1
DATABASE_TYPE=ORACLE
NEW_DB_ADMIN_USERNAME=OASUSER
NEW_DB_PASSWORD=welcome1
NEW_DB_SCHEMA_PREFIX=FA
NEW_DB_SCHEMA_PASSWORD=welcome1
NEW_DB_CONFIRM_SCHEMA_PASSWORD=welcome1

PORT_RANGE_START=9500
PORT_RANGE_END=9999

#Select type of initial application.  Supported types are APPLICATION_TYPE_BI_BUNDLE, APPLICATION_TYPE_EMPTY.
APPLICATION_TYPE=APPLICATION_TYPE_EMPTY
BI_DEFAULT_SERVICE_INSTANCE_KEY=ssi" > $RSP_FILE

# Domains directory
mkdir /u01/fmw/domains -p

ORACLE_HOME=/u01/fmw
RSP_FILE=/sw/responses/oas_config.rsp

$ORACLE_HOME/bi/bin/config.sh -silent -responseFile $RSP_FILE -invPtrLoc /sw/responses/oraInst.loc

Once you run the configuration assistant in standard topology, the AdminServer and Biserver and its component services will be started automatically after the domain creation. To get services running the first time might take time depending on your system speed and RAM size allocations. Initially, I've launched 2GB RAM the AdminServe and components started but failed to start the bi-server (managed server) in the OAS domain.

An alternative choice for OAS Domain configuration with existing RCU schemas.

oas_domain_config_existing_rcu.rsp

[ENGINE]
Response File Version=1.0.0.0.0
[GENERIC]
PERFORM_BI_STARTUP=true
CONFIGURE_BIEE=true
CONFIGURE_BIP=true
INSTALL_EXALYTICS_IN_MEMORY_SOFTWARE=false
SERVICE_INSTANCE_MODE=SINGLE

############ CHANGED BY PAVAN ####################

DOMAIN_NAME=oas_qa_domain
DOMAINS_DIR=/u01/fmw/domains
ADMIN_USER_NAME=weblogic
ADMIN_PASSWORD=weblogic123
ADMIN_CONFIRM_PASSWORD=weblogic123
DOMAIN_WORK=LOCAL

SCHEMA_TYPE=SCHEMA_TYPE_EXISTING
EXISTING_DATABASE_TYPE=ORACLE
CONNECT_STRING=192.168.33.250:1521:ORCLPDB1
DATABASE_TYPE=ORACLE

EXISTING_DB_PREFIX=QA
EXISTING_DB_PASSWORD=welcome1

PORT_RANGE_START=9500
PORT_RANGE_END=9999
APPLICATION_TYPE=APPLICATION_TYPE_EMPTY
BI_DEFAULT_SERVICE_INSTANCE_KEY=ssi
The command to execute the above domain configuration with existing RCU will be as follows:
  ORACLE_HOME=/u01/fmw
  RSP_FILE=/sw/responses/oas_config_existing_rcu.rsp
  $ORACLE_HOME/bi/bin/config.sh -silent -responseFile $RSP_FILE -invPtrLoc /sw/responses/oraInst.loc

OAS Domain Console

OAS Domain console access with the port 9500 and the Listen Address combinations as :


To operate WebLogic domain console; Log in with the OAS domain credentials in my domain it is weblogic/weblogic123


EM Console access

Accessing the Enterprise Manager console (em console) AdminServer Listen address and port will be used with the context as /em


Post login to the em console :
OAS Domain EM Console

To opera EM console; Log in with the OAS domain credentials in my domain it is weblogic/weblogic123

To resolve the issue increased that RAM size to 4GB then it worked successfully started te bi_server. Able to access analytics url.



Log in with the same user/password that used to login to WebLogic Admin Console.

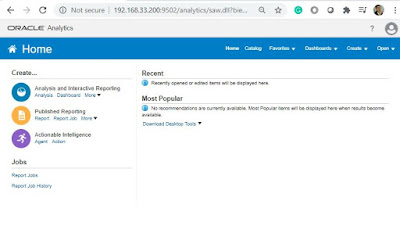

OAS Analytics console


Data Visualization console
Login with the same credentials that used for Admin Console.

OAS DV console


We will discuss more details about Enterprise topology configuration in another post.
Enjoy Lockdown learnings!! about Oracle Anlaytics!

Reference Links:
  1. Ora-base blog on OBIEE 12.2.1.3 Install & configure
  2.  OAS 5.5 docker image creation steps

Keep sharing with your technical teams love to hear from you more in the comments!
