Integrating Oracle HTTP server with WebLogic 11g/12c

By -

Integrating Oracle HTTP server with WebLogic 11g

This post continues a series of learning OHS 11g installation and configurations. You can visit our previous blog posts for the following steps:

Step 1: Install WebLogic 10.3.6.0 on Vagrant Ubuntu [Done!]

Step 2: Install Oracle HTTP server

Step 3: Edit mod_wl_ohs.conf which is located at /home/pavanbsd/ohs/Middleware/Oracle_WT1/instances/instance1/config/OHS/ohs1


Here I want to access the WebLogic admin console through OHS server proxy plugin. So I had given Adminserver details in mod_wl_ohs.conf file as shown the below.

LoadModule weblogic_module "${ORACLE_HOME}/ohs/modules/mod_wl_ohs.so"


WebLogicHost myweb1.vybhavatechnologies.com
WebLogicPort 7001


# Admin Server and EM

SetHandler weblogic-handler
WebLogicHost myweb1.vybhavatechnologies.com
WeblogicPort 7001



SetHandler weblogic-handler
WebLogicHost myweb1.vybhavatechnologies.com
WeblogicPort 7001



SetHandler weblogic-handler
WebLogicHost myweb1.vybhavatechnologies.com
WeblogicPort 7001


# Web Application

SetHandler weblogic-handler
WebLogicCluster myweb1.vybhavatechnologies.com:7011,myweb2.vybhavatechnologies.com:7011


Step 4: Now uncomment the line
include "/home/pavanbsd/ohs/Middleware/Oracle_WT1/instances/instance1/config/OHS/ohs1/mod_wl_ohs.conf
Modify in httpd.conf file which  is located in same location as mod_wl_ohs.conf file.



Step 5:  At this step we have to start/restart the ohs server.

Go to  /home/pavanbsd/ohs/Middleware/Oracle_WT1/instances/instance1/bin location and execute the below script.  .


./opmnctl startall

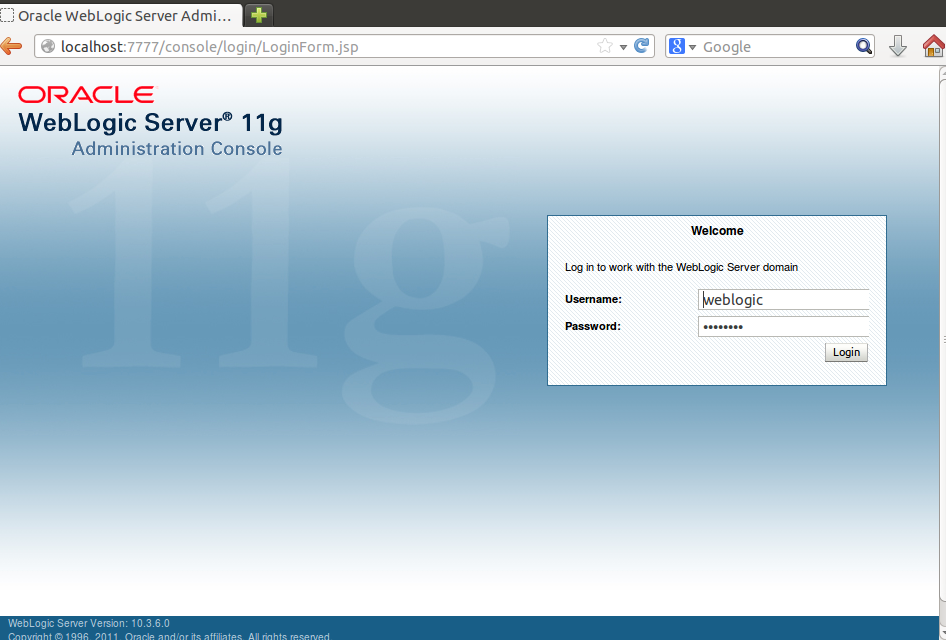

Step 6: Now We can check the access of WebLogic console through ohs server in firebox.


  I am successfully accessed my WebLogic Console through Ohs server.  In the URL We must give Ohs server host and port .

 http://ohs server ip:ohsport/console

Note: WebLogic server must be in Running state before accessing through Ohs server.

 Please share your experiences in below comment box.
